Product Highlight

1608-CHANNEL GNSS AND MULTI-CONSTELLATIONS ALGORITHMS

Provide full GPS + GLONASS + Galileo + BeiDou + QZSS constellation tracking, even in harsh environments. Output standard DGNSS corrections in RTCM 3.x format for optimum performance. 8 GB internal memory to store GNSS raw data for post-processing or quality control.

RUGGED DESIGN FOR UNINTERRUPTED WORK

Designed to meet stringent IP67 standards for water and dust resistance. Magnesium-aluminium body for reduced weight and increased durability. Can withstand a 2-meter drop to hard ground.

INTEGRATED AND PORTABLE GNSS BASE SOLUTION

Easy to carry, reducing overall package weight by over 70%. Easy to set up, get started in the field at least 3 times more efficiently. Integrated 5W UHF and 4G modem for multi-mode RTK corrections transmission via UHF and TCP/IP services.

BROADER COVERAGE AND LONGER DURATION

Low power consumption, in a typical survey operation the 5W. FarRadio UHF modem can operate for over 12 hours with 15km coverage. In more challenging surveys, such as forests and suburban areas, coverage can be up to 5 km. In open areas coverage can reach up to 25 km.

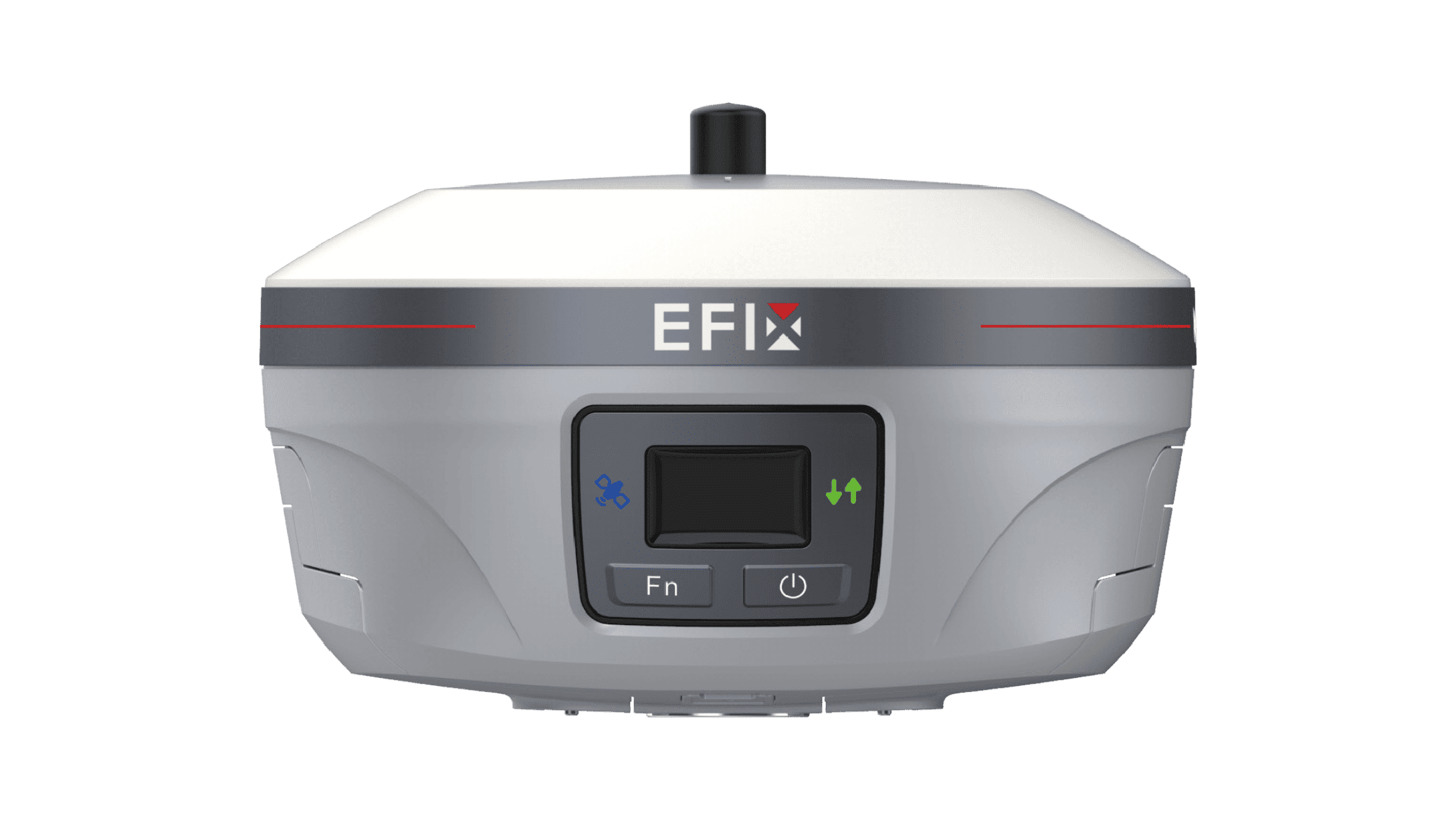

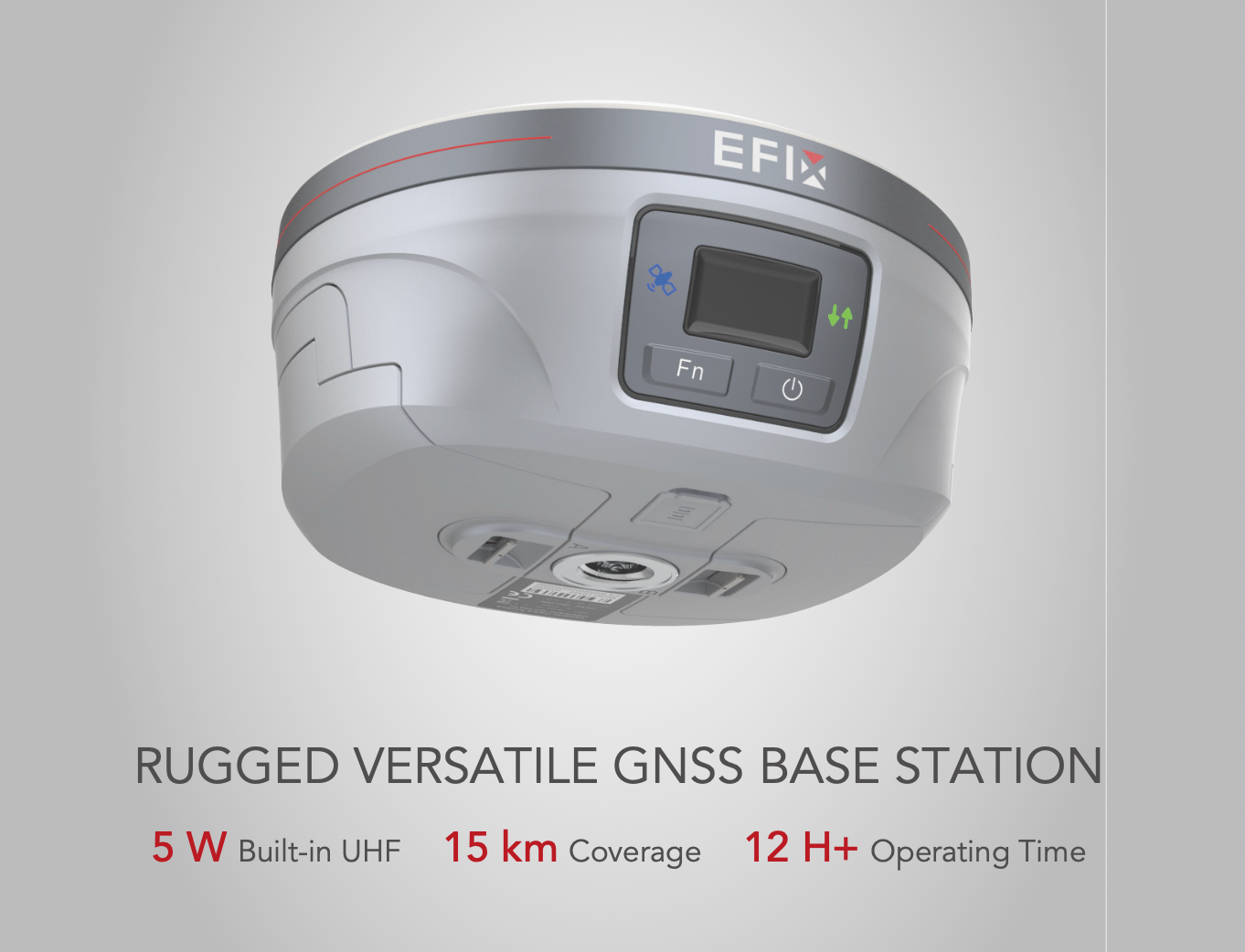

The eBase GNSS receiver is an integrated professional GNSS base station designed to meet the specific needs of surveyors working in UHF base-rover mode.

The integrated UHF radio, low power consumption and long life eliminates the need for heavy external batteries, bulky cables, external radios and radio antennas. Compared to standard external radio modems, the eBase UHF base station offers outstanding performance with wide coverage and long operating times.

Its 5-watt radio module provides up to 15 km of GNSS RTK operating range and over 12 hours of battery life without battery changes. In addition, the eBase features real-time UHF interference self-testing technology, allowing surveyors to select the most appropriate frequency channel for use.

Technical Specifications

Power consumption

12 W (depending on user settings)

Li -ion battery capacity

2 x 7000 mAh, 7.4 V

Operating time on internal battery

UHF receive / transmit (5 W): 8 h to 12 h
Static: up to 15 h

External power input

9 V DC to 28 V DC

Network modem

Integrated 4G modem
LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20
DC - HSPA+/HSPA+/HSPA/UMTS:
B1, B2, B5, B8
EDGE/GPRS/GSM850/900/1800/1900MHZ

Wi-Fi

802.11 b/g/n, access point mode

Bluetooth®

BT4.1

Others

NFC

Ports

1 x 7-pin LEMO port (external power, RS -232)
1 x UHF antenna port (TNC female)

UHF radio

Standard Internal Rx/Tx: 410 - 470 MHz
Transmit Power: up to 5 W
Protocol: EFIX, Transparent,TT450, Satel
Link rate: 9600 bps / 19200 bps
Range: Typical 15 km with FarRadio, up to 25km with optimal conditions

Data formats

RTCM2.x, RTCM3.x, CMR input / output
RINEX2.11, 3.02 NMEA 0183 output
NTRIP Client, NTRIP Caster

Data storage

8 GB memory

Channels

1608 channels

GPS

L1C/A/L2P(Y)/L2C/L5

GLONASS

L1, L2

Galileo

E1, E5a, E5b, E6*

BeiDou

B1l, B2l, B3l, B1C, B2a, B2b

QZSS

L1, L2, L5, L6*

PPP

B2b-PPP

SBAS

L1, L2

Real time kinematic (RTK)

Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Initialization time: < 10 s
Initialization reliability: > 99.9%

Post -processing kinematics (PPK)

Horizontal: 3 mm + 1 ppm RMS
Vertical: 5 mm + 1 ppm RMS

Post - processing static

Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS

Code differential

Horizontal: 0.4 m RMS
Vertical: 0.8 m RMS

Autonomous

Horizontal: 1 m RMS
Vertical: 1.5 m RMS

Positioning rate

Up to 10 Hz

Time to first fix (3)

Cold start: < 45 s
Hot start: < 30 s
Signal re-acquisition: < 2 s

Size (L x W x H)

Φ160.5 mm ×103mm
(Φ 6.32 in × 4.06 in)

Weight

1.73 kg (3.81 lb)

Environment

Operating: -40'C to +65°C
(-40°F to +149°F)
Storage: -40'C to +85 °C
(-40'F to +185°F)

Humidity

100% condensation

Ingress protection

IP67 waterproof and dustproof, protected from temporary immersion to depth 1m

Shock

Survive a 2-meter pole drop

Front panel

2 LED
0.96” OLED Display
