Product Highlight

624-CHANNEL ADVANCED GNSS TRACKING

Full constellation for superior GNSS raw data. The 624-channel F-NET Pro GNSS simultaneously tracks signals from GPS, GLONASS, Galileo, BeiDou, and SBAS satellites with outstanding GNSS raw data quality. The integration of the F-NET Pro GNSS reference stations as the foundation of RTK networks guarantees optimal GNSS RTK corrections, resulting in the highest quality GNSS rover positioning.

FLAWLESS GNSS DATA INTEGRITY

Industrial design for optimal data integrity. The F-NET Pro GNSS is IP67-rated water and dust resistant to withstand challenging environmental conditions at its installation site, reducing potential downtime due to moisture or dust ingress. Its integrated design and advanced power supply ensure uninterrupted operation 24 hours a day, 7 days a week.

POWERFUL PERFORMANCE

The FL3 offers the highest level of performance and reliability for long-range GNSS applications in any harsh environment. The maximum transmission power of the station is 28W, and Channel spacing is selectable at 12.5 kHz or 25 kHz. All-weather, water and dust proof rugged IP67 rating

MULTIPLE PROTOCOLS AND DATA FORMATS

Support industry-standard UHF protocols, Support CHC, Transparent, TT450S protocol, and support CMR, RTCM2.X, RTCM3.X, a variety of data formats, for your signal service downtime.

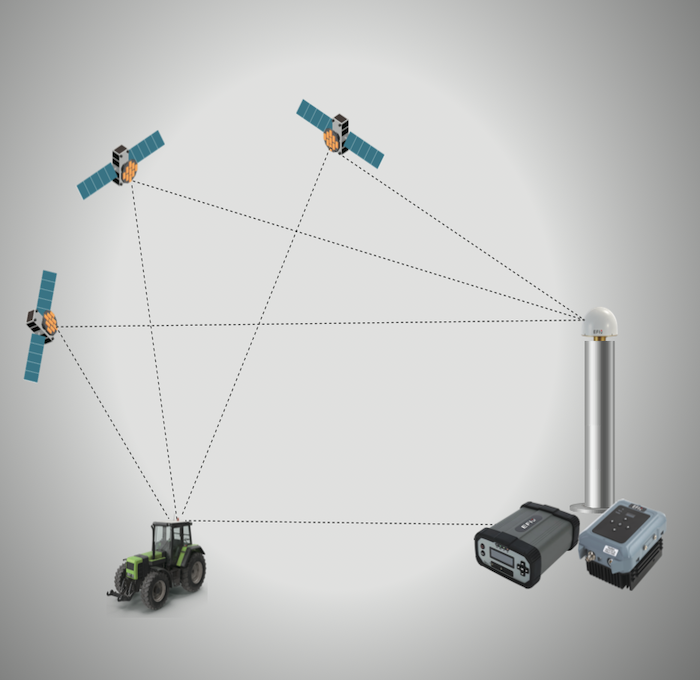

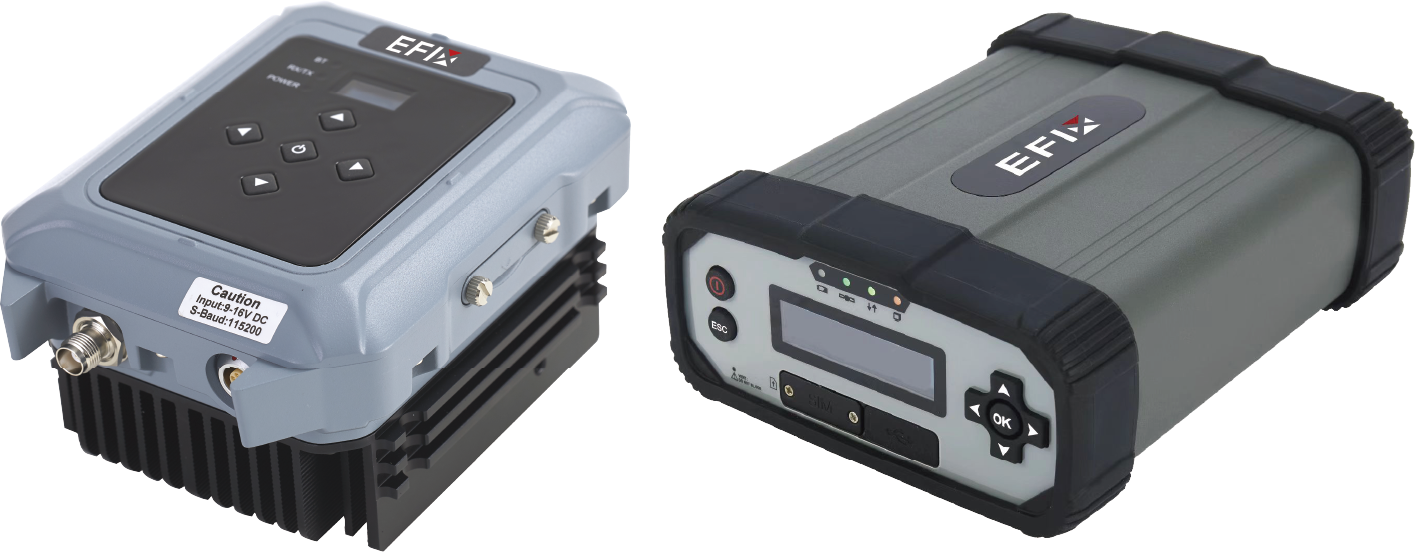

The F-NET Pro Fixed Base Station is a powerful GNSS position correction solution. It comprises a F-NET Pro GNSS receiver and an FL3 external radio. The F-NET Pro GNSS reference station can track multi-constellation GNSS signals, has large storage and battery capacity, is secure and makes it extremely reliable and easy to use. The F-NET Pro GNSS receiver is shock-resistant and suits any environment. It features voltage stabilisation, lightning protection, real-time self-diagnosis, and status monitoring to ensure uninterrupted operation.  The F-NET Pro is an advanced GNSS reference station to provide positioning services in various demanding industries. The FL3 is a UHF radio modem with many innovative features. The FL3 provides reliable base-to-rover RTK GNSS corrections over long communication distances. In areas not covered by the Ntrip service, it can provide long-distance base station signal service, so that your work becomes easier and convenient.

DOWNLOAD PDF >>

F-NET Pro

Fixed Base Station

Technical Specifications

Real time kinematic (RTK)

Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Initialization time: < 8 s
Initialization reliability: > 99.9%

Post-p rocessing static

Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS

Post-processing static (long observation)

Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 3.5 mm + 0.4 ppM RMS

Protocols

Correction formats: CMR,
RTCM2.x, RTCM
3.x
Observables: RINEX2.x, RINEX3.x,
BINARY
Position/Status I/O: NMEA 0183
output,
Met sensor

External power

9 V DC to 16 V DC

Environment

Operating: -40°C to +65
°C(-40°F to +149°F)
Storage: -45°C to +80°C
(-49°F to +176°F)

Humidity

100%

Ingress protection

IP68 waterproof and dustproof, protected
from temporary immersion to depth of 1 m

Shock

IEC68-2-27, survive a
1-meter pole drop

Power consumption

5 W (3 W in the power
saving mode)

Internal batteryCapacity

17,000 mAh, 7.4 V

Operating time on internal battery (2)

Up to 24 h
(depending receiver configuration)

External power

9 V DC to 36 V DC

Frequency bands

410 MHz to 470 MHz

Transmit power

5 W / 22 W / 28 W

Protocol

EFIX, Transparent, TT450S

Size (L x W x H)

175 mm x 140 mm x 65 mm
(6.9 in x 5.5 in x 2.6 in)

Weight

2 kg (70.5 oz)

Ingress protection

IP67 dust and waterproof, protected from
temporary immersion to depth of 1 m

Mount

Tripod bracket

GPS

L1/L2/L5

GLONASS

L1/L2

Galileo

E1/E5a/E5b

BeiDo u

B1/B2/B3

QZSS

L1/L5

SBAS

L1
GNSS accuracies Communications and Data storage Power Hardware Electrical Radio specifications Physical GNSS characteristics
