Product Highlight

Supported by multiple correction sources and satellite constellations: GPS, GLONASS, Galileo, Beidou, SBAS, and L-BAND.

Achieves ±2.5cm (CEP95) horizontal accuracy within 5 minutes using PointSky technology, even without network or base station coverage.

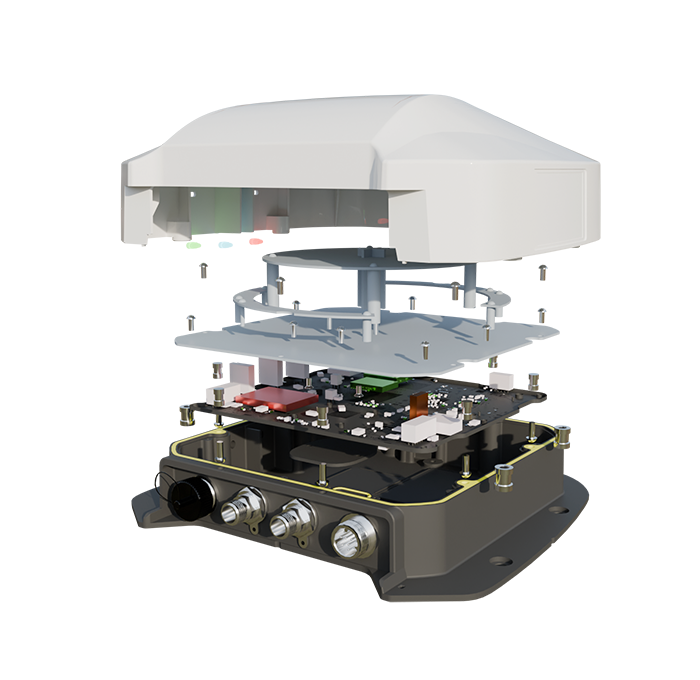

Features a high-precision GNSS board, antenna, 4G, IMU, and UHF radio modems.

Equipped with 2 CAN ports and 2 RS232 serial ports, customizable CAN/serial protocols for OEM customers.

Durable with IP67 protection, suitable for agricultural environments.

Technical Specifications

Receiver

BDS:BI,B2,B31.BIC,B2a,B2b
GPS:LIC/A,L2P(Y)/L2C,L5
GLONASS:G1,G2
Galileo:El,E5a,E5b,E6
QZSS: Ll,L2,L5
L-Band

GNSS Mode

SPP, DGPS, RTK, H-PPP, PointSky

Accuracy (RTK)

Horizontal: ±8mm + 1ppm RMS
Vertica: ±15 mm +1ppm RMS

Accuracy (PointSky)

Horizontal:±2.5cm(CEP95)
Vertical:±5cm(RMS)
Convergence: <5mins

Cellular

4G LTE

Radio

EFIX、TT450、Transparent、SATEL

Power Supply

9-36 V DC

Dimensions(W x H x D)

208 x191x73 mm

Working Temperature

-20℃~+70℃

Storage Temperature

-40C~+85℃

Dustproof and Waterproof

IP67

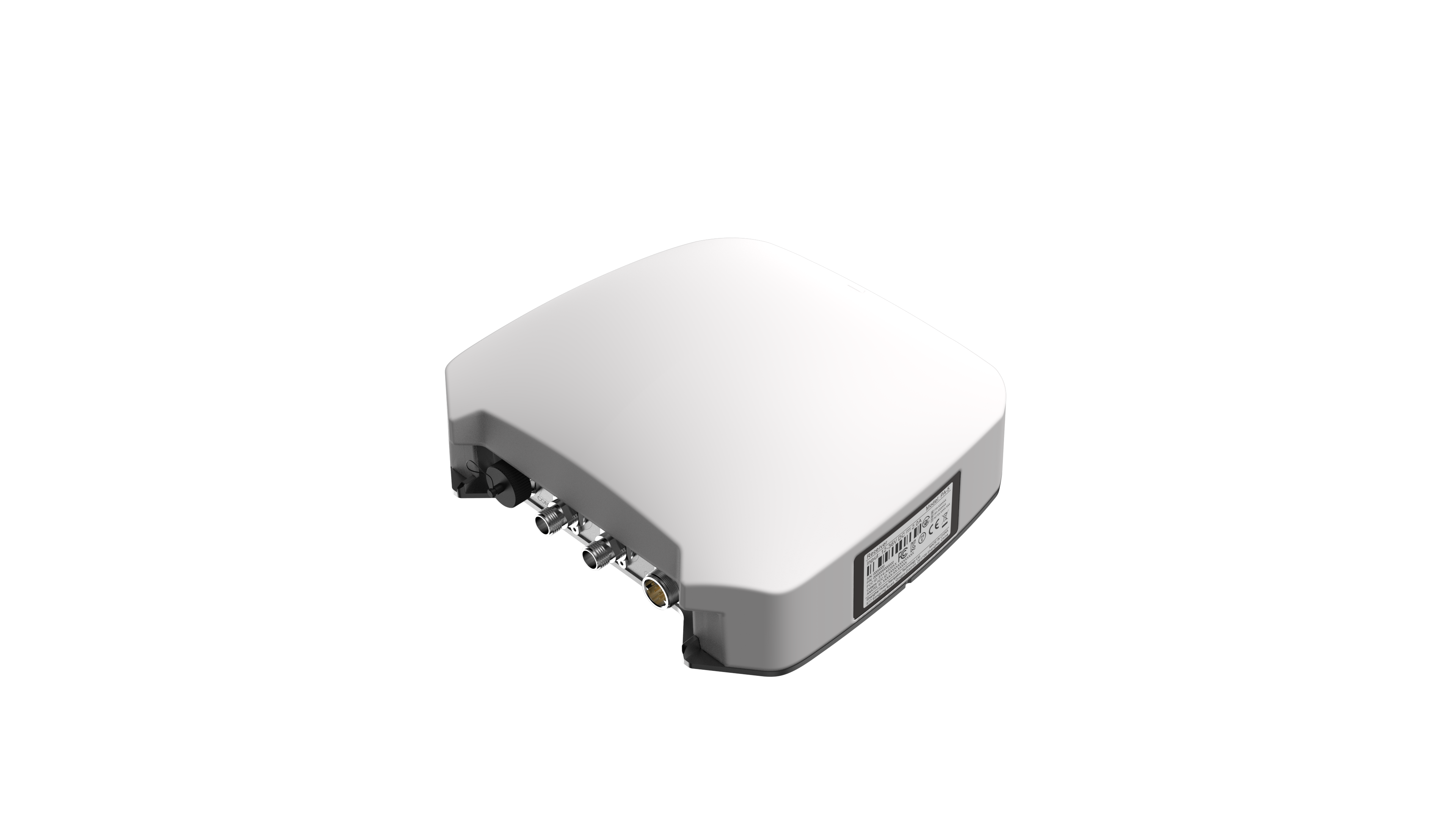

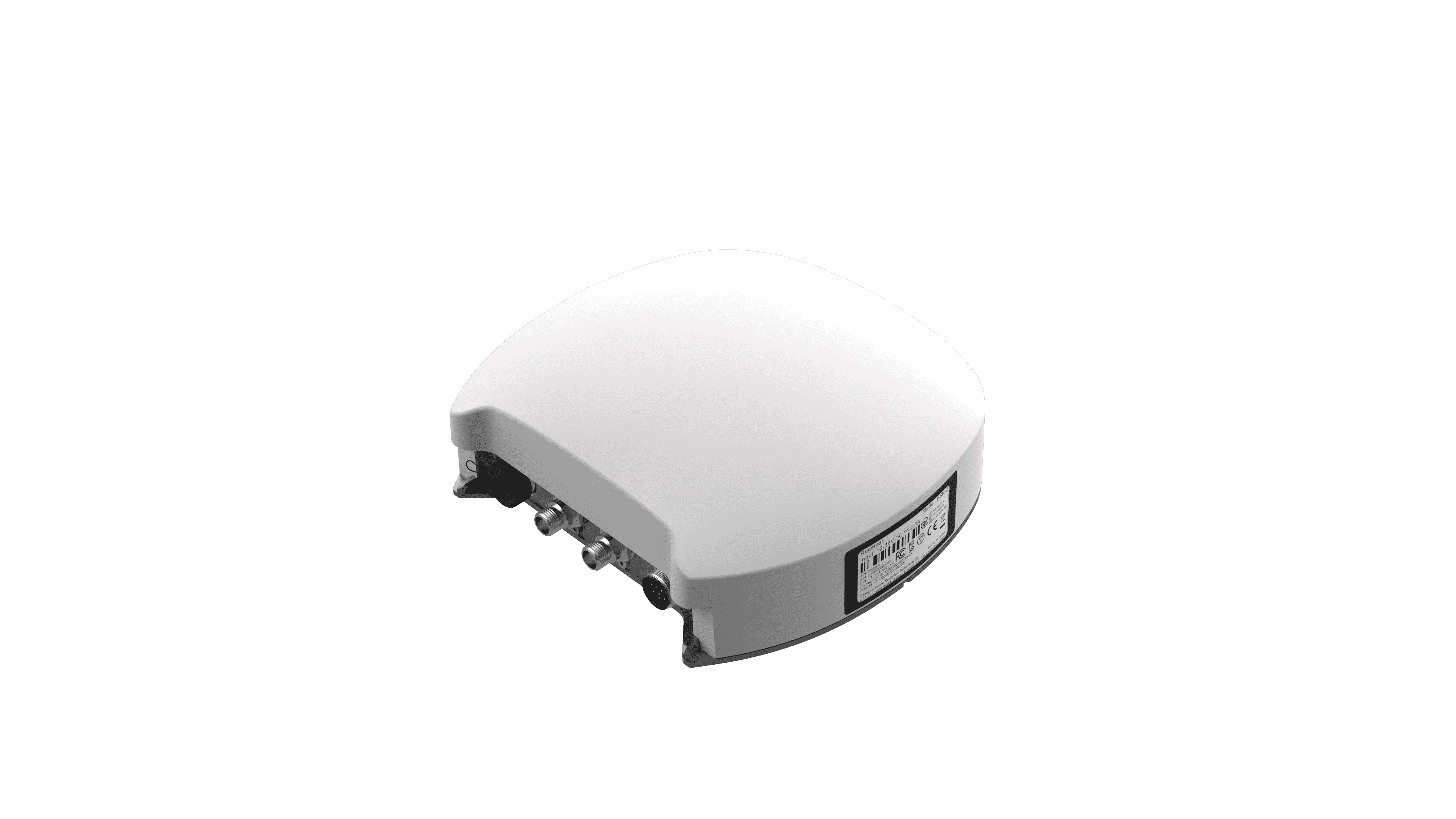

FR-5 receiver
